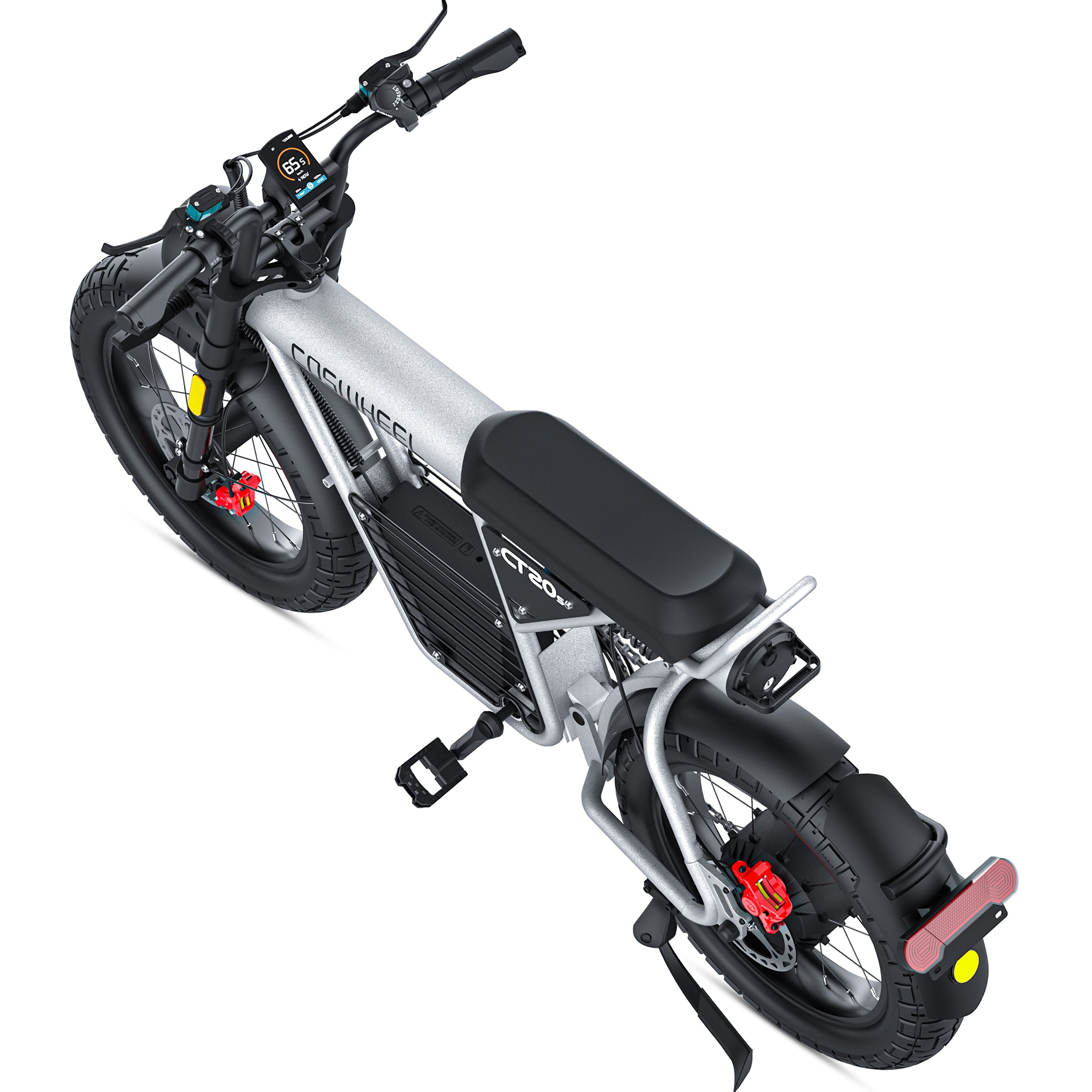

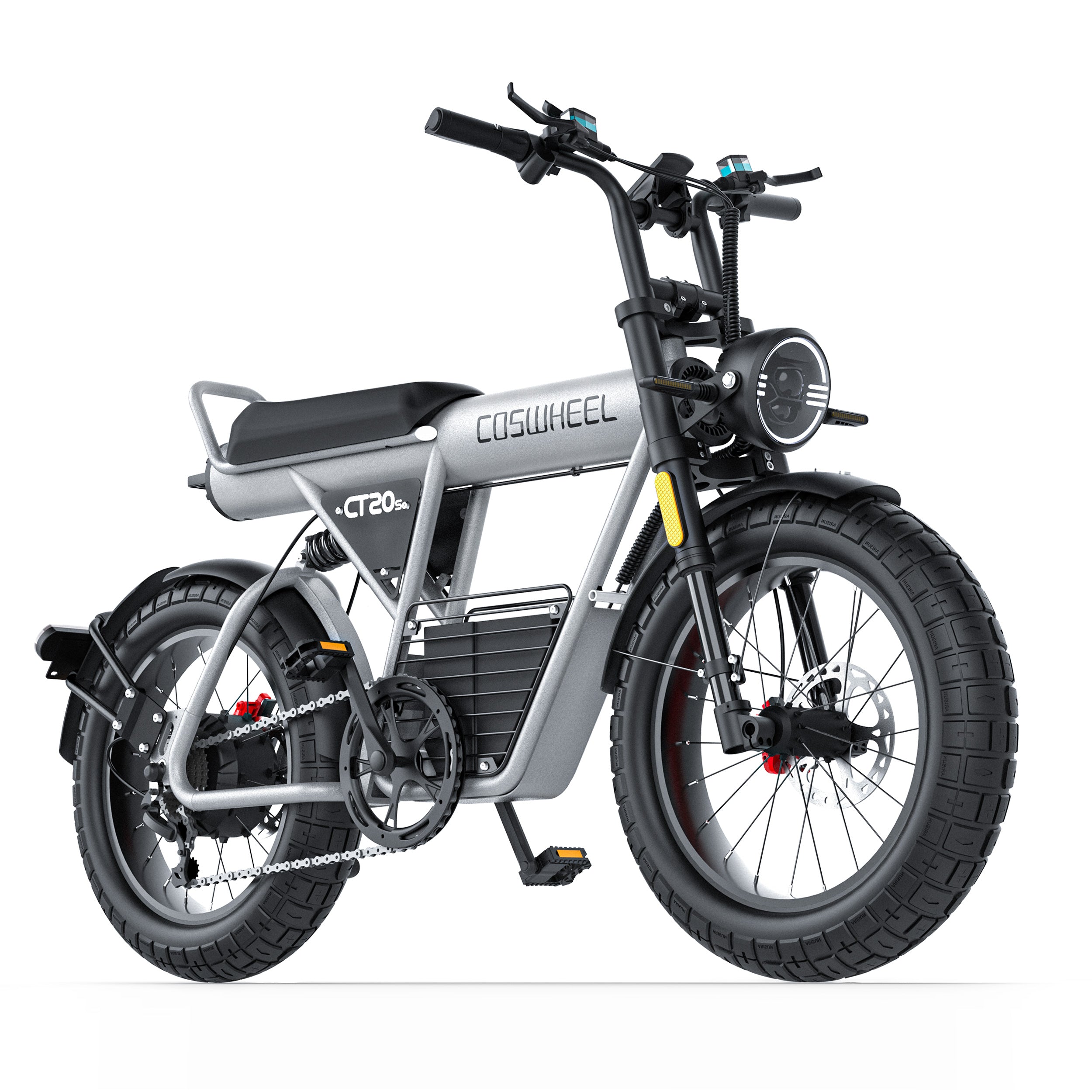

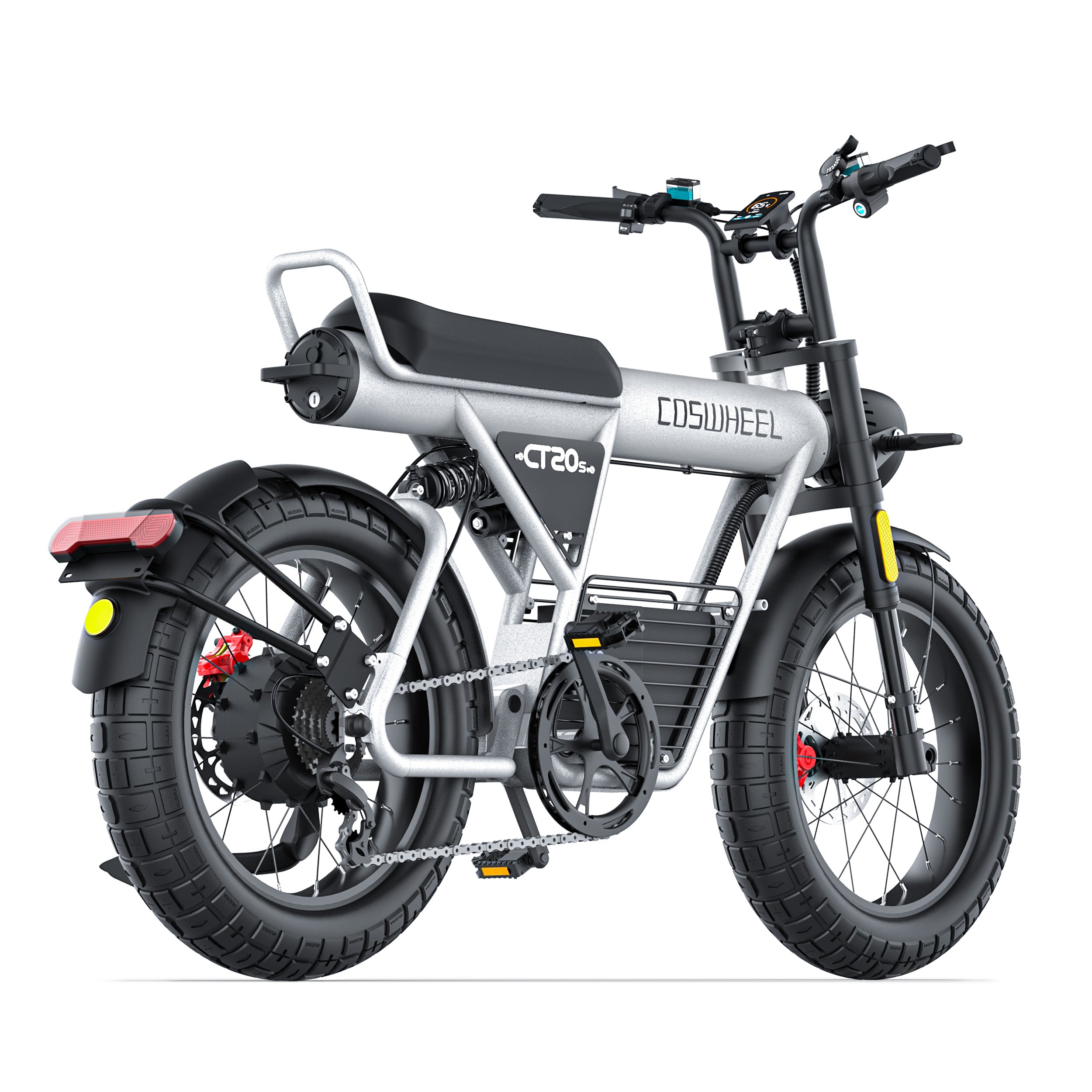

CT20S EBIKE
torque 120N.m, can climb 35 degrees slope, fastest fat tire electric bike
What Online Reviewers Say CT20S
The CT20S ebike is favored by more and more customers, and many customers have posted their objective evaluations of the CT20S on YouTube.
CT20S Specifications
Performance
- Top Speed: Class 2/3, 28+ Mph (45+Km/h); Off-road Mode +++ (60V)
- Range: 55+miles (88km) in Class-2 throttle-only mode (pure electricity); 100+miles (161km) in Class-1 PAS (pedal assist)
- Motor: 60V Peak 2000W (Rated 1500W) Brushless Rear Hub Motor 120N.m
- Battery: 60V 27.5Ah Battery (Lithium 18650 Cells)
- Energy: 1650Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Rear Suspension: 180mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: Off-road Tire 20" * 5.0" IA-2149 with AV+Lining
- Throttle: Grip Twist Throttle (Old) / Thumb Throttle (New)
Electronics
- Charger: 60V5A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display
- Controller: 60V 35A

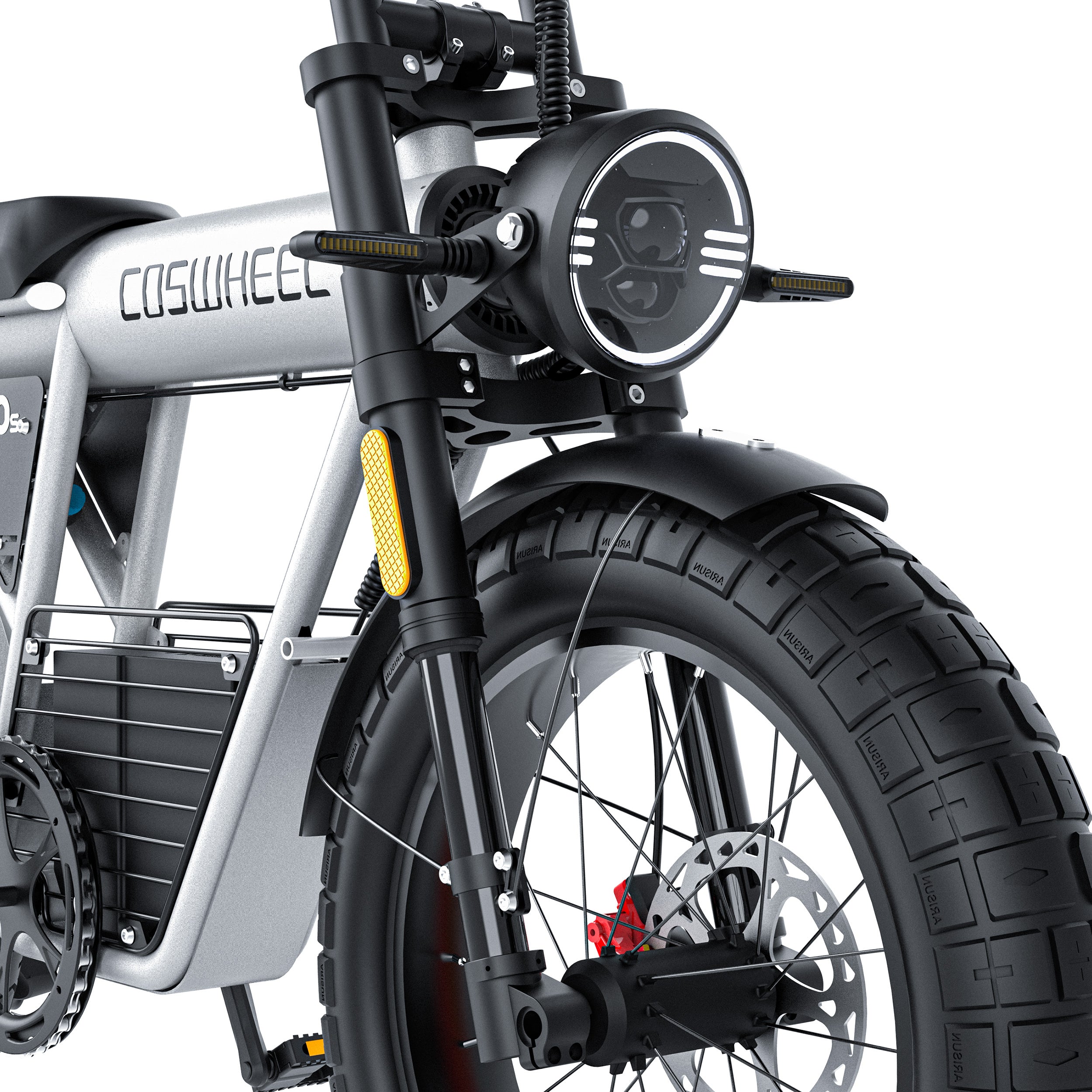

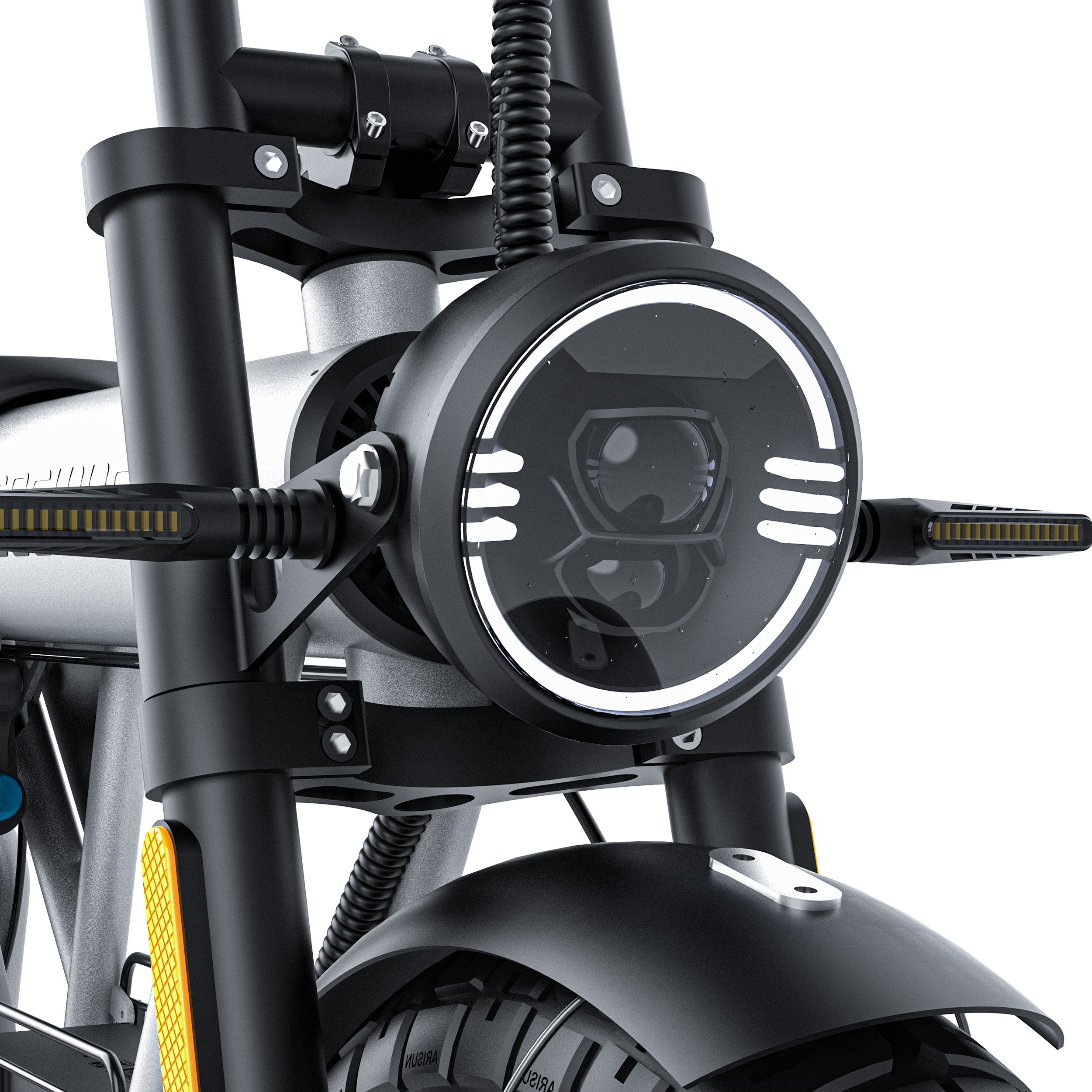

- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 5 Levels
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Sand Black 31.8*660
Geometry
- Suitable Height: 5'1" - 6'5"
- Seat Height: 33.4" (85cm)
- Bike Height: 45.3" (115cm)
- Wheelbase: 45.3" (115cm)
- Handlebar Width: 26.4" (67cm)
- Bike Weight: ≥88lbs (with Battery) (≥40kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 26.4" *45.3" (180*67*115cm)
- Package Size: 59.4" * 14.2" * 35.4" (151*36*90cm)
CT20S is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.

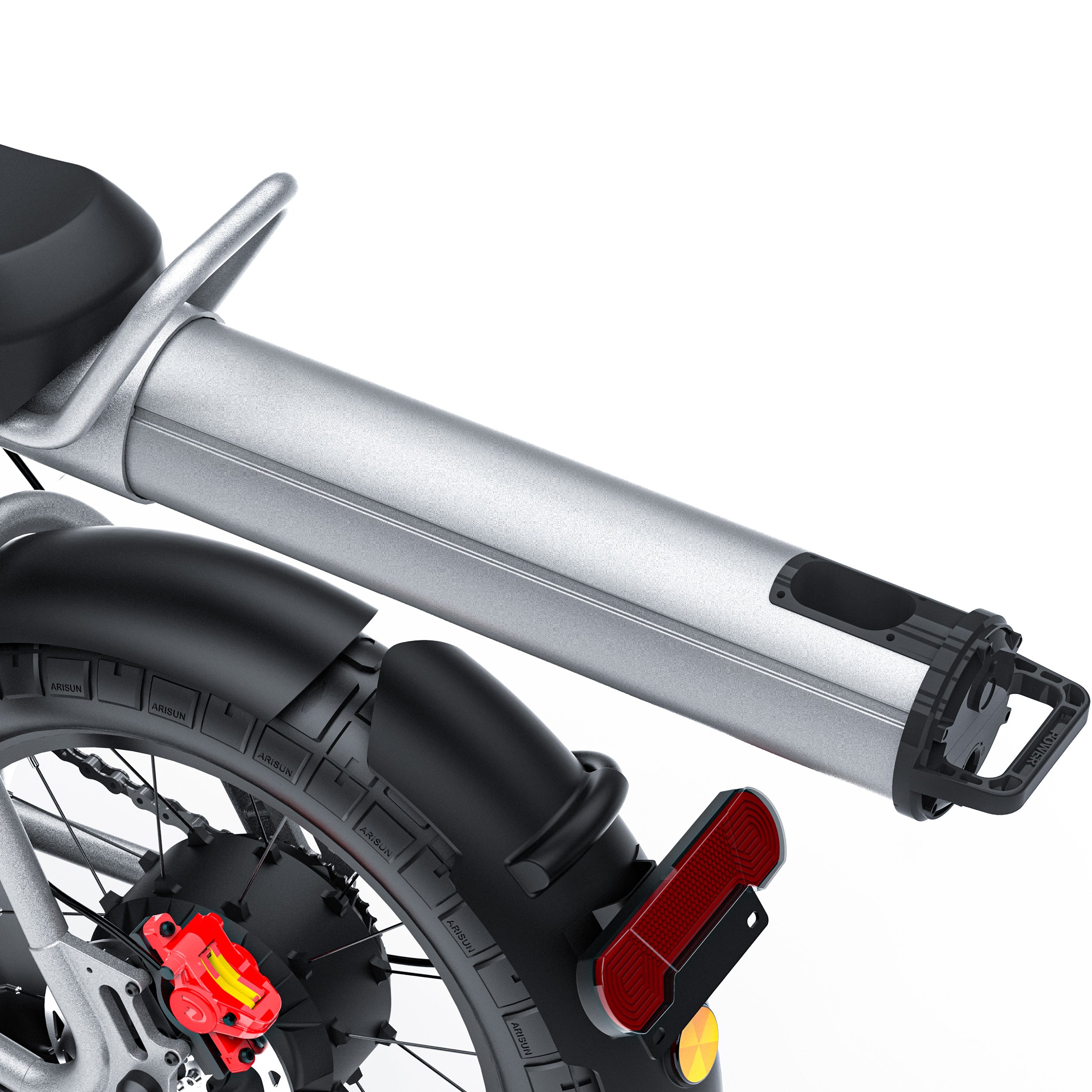

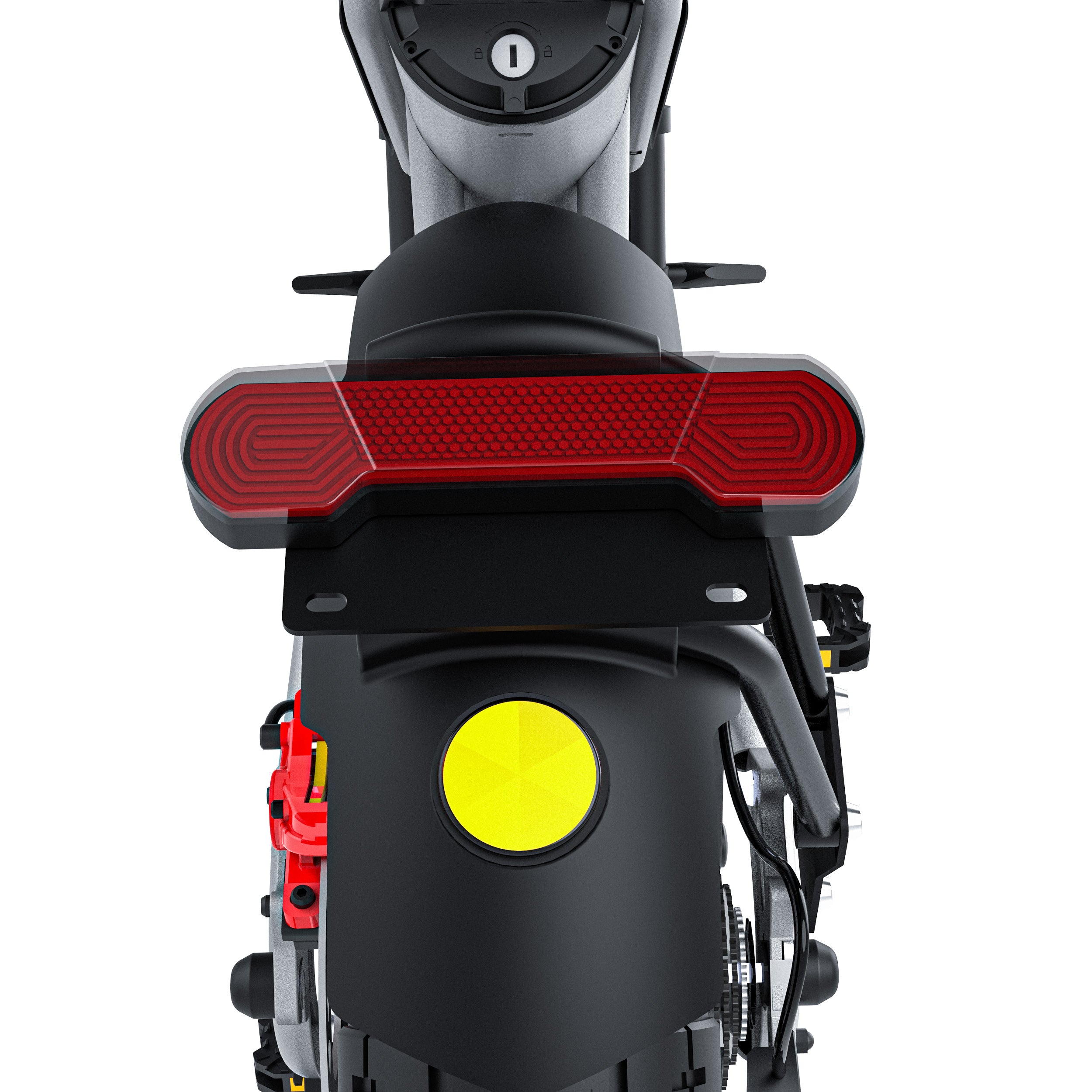

Equipped with double protection fenders, it is sturdy and durable, and the rear taillight LED is mounted on the fenders, making it look more luxurious.

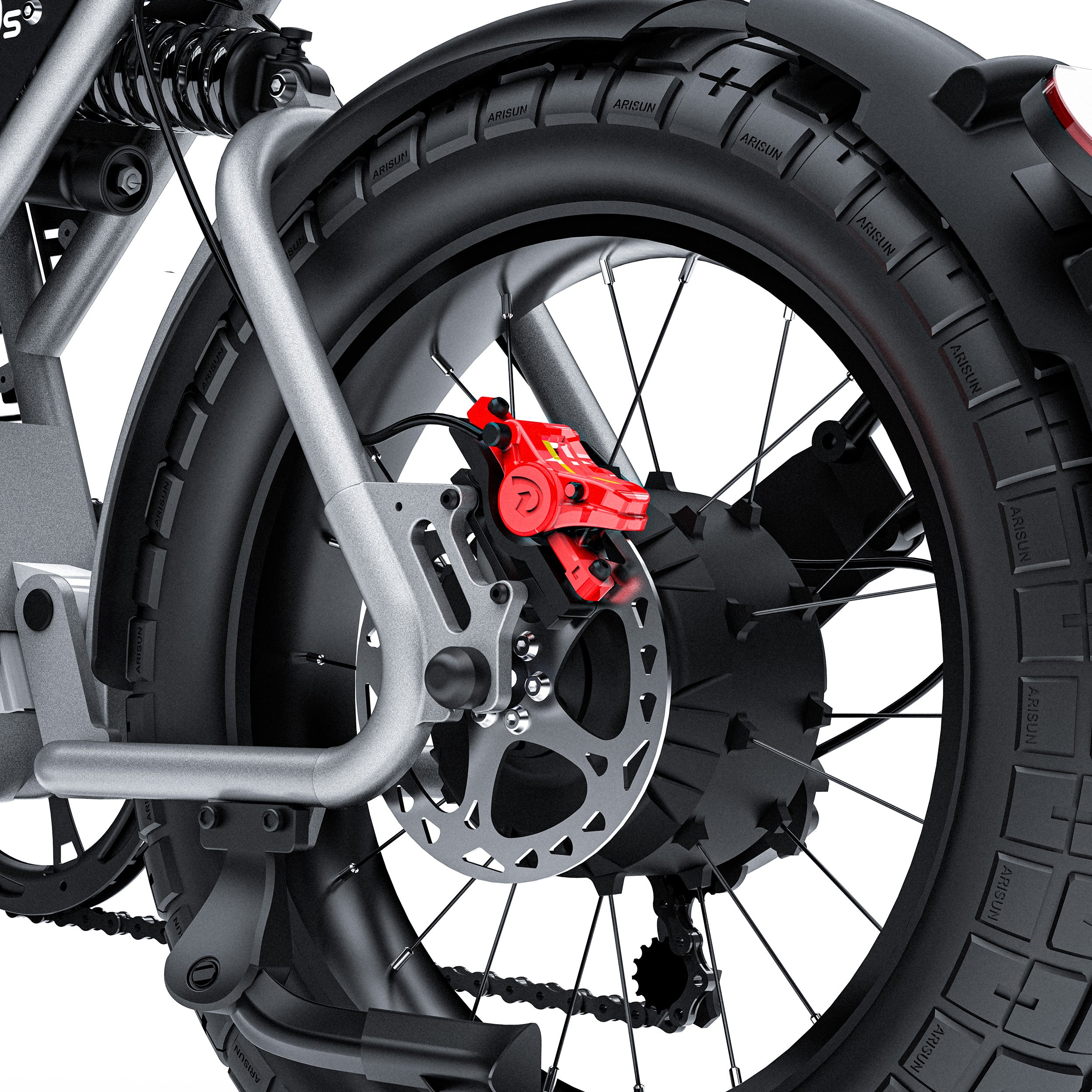

Front and rear motorcycle-level dual-piston hydraulic oil brakes, equipped with 180MM high-quality brake discs, make your riding safer.

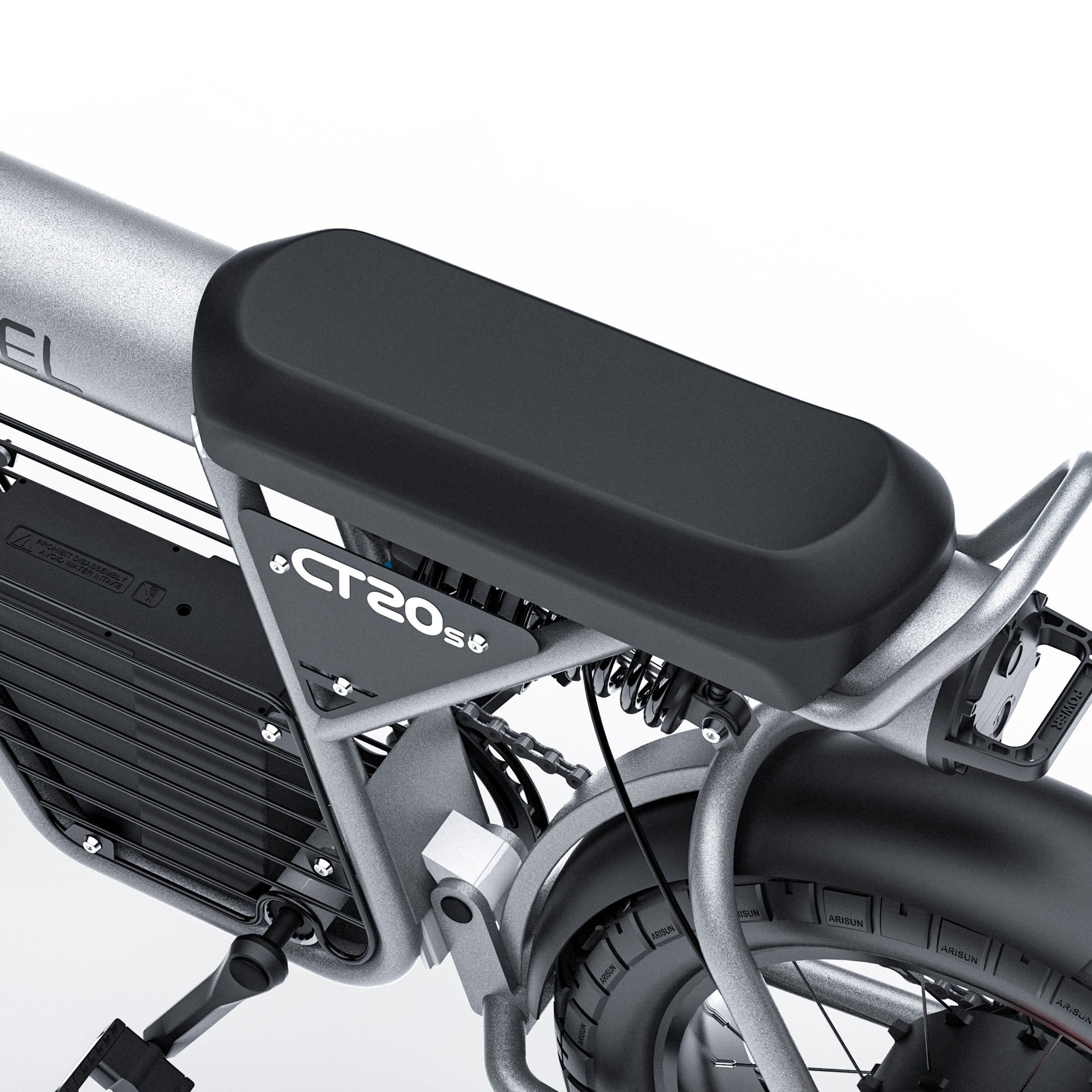

With soft and thick leather seat, make your ride more comfortable.
Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.

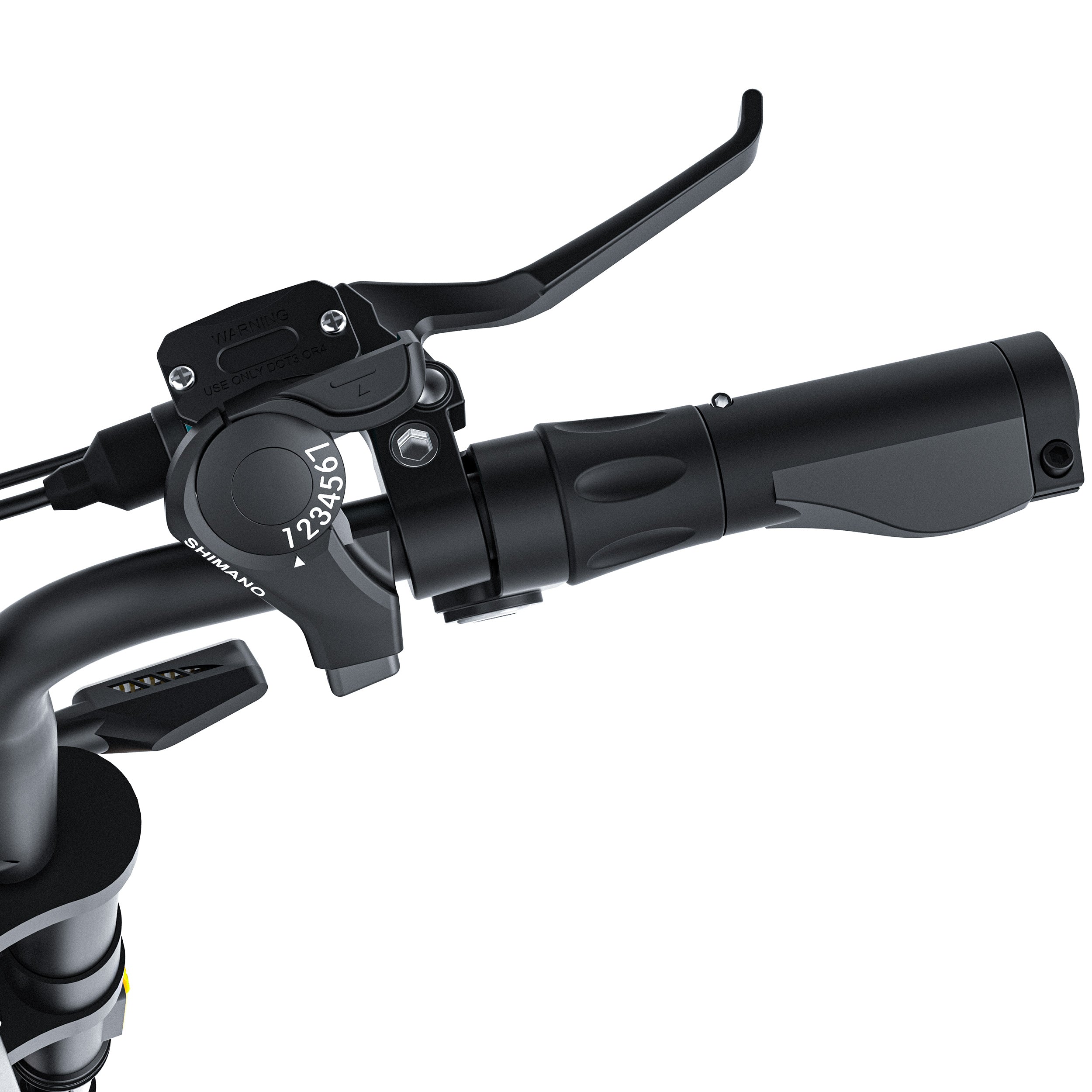

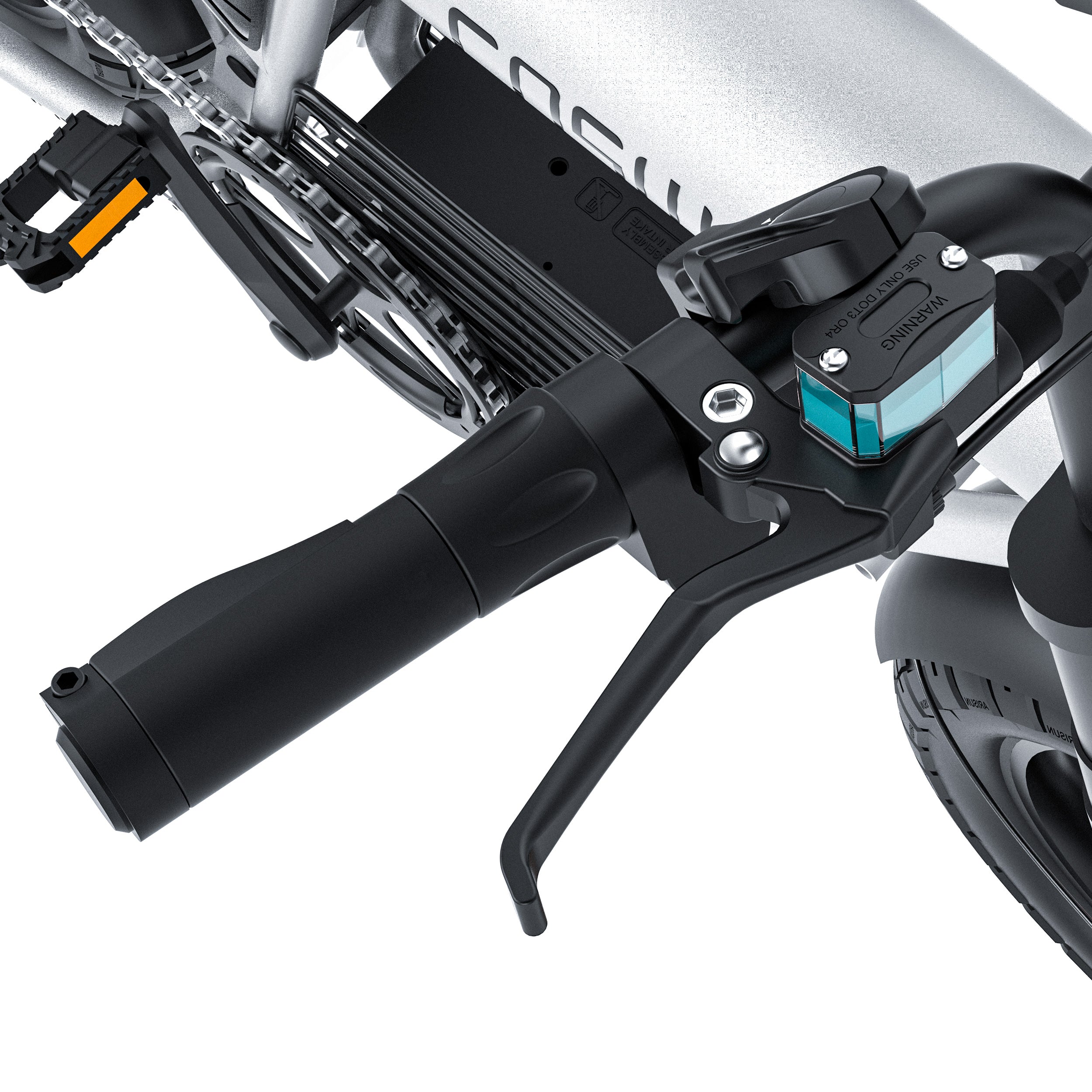

In 2024, the new CT20S has upgraded the handlebar from Grip Twist Throttle to Thumb Throttle. A quick release function has been added to make it easier to replace accessories.
CT20S is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.
Equipped with double protection fenders, it is sturdy and durable, and the rear taillight LED is mounted on the fenders, making it look more luxurious.
Front and rear motorcycle-level dual-piston hydraulic oil brakes, equipped with 180MM high-quality brake discs, make your riding safer.
With soft and thick leather seat, make your ride more comfortable.
Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.
In 2024, the new CT20S has upgraded the handlebar from Grip Twist Throttle to Thumb Throttle. A quick release function has been added to make it easier to replace accessories.
The CT20S is equipped with a high-speed brushless motor with a peak value of 2000W (rated at 1500W), with an instantaneous maximum current of 35AH and a torque of 120Nm (60V), allowing you to easily shuttle between cities and country roads.
CT20S provides two high-quality 18650 lithium battery options of 1650Wh (60V 27.5AH), with a battery life of up to 100miles (161KM). The maximum speed is 28+MPH (45+KM/H), off-road mode+++ (60V).

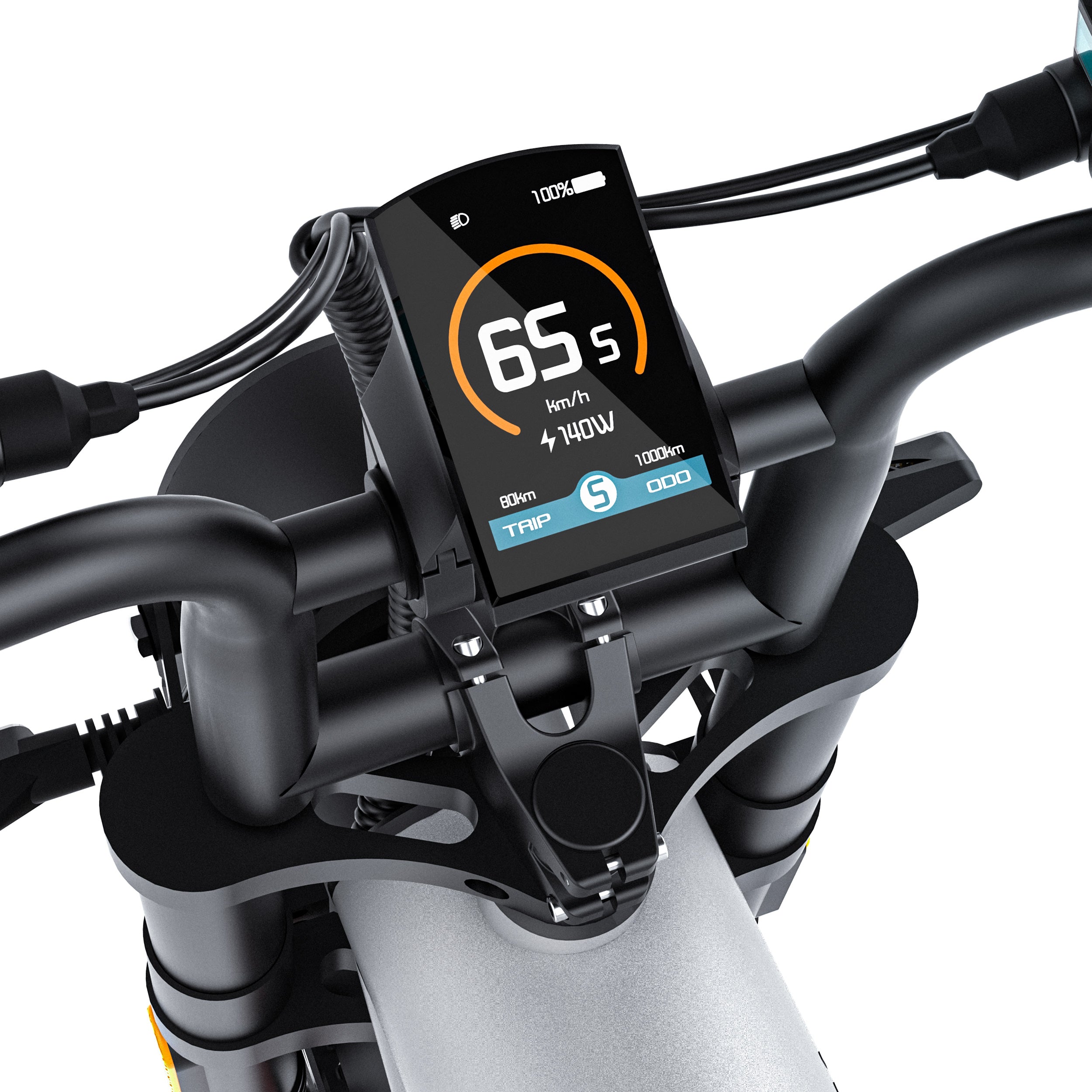

The CT20S LED display can be connected to an iPhone and Android (60V) to locate the ebike's position and view various parameters at any time. For specific details, please consult online customer service.
Customers And CT20S
Support
Manual
Certificate
VIN Number
The VIN number (Serial number) of the CT20S ebike is in the middle of the front fork of each CT20S, as shown in the picture (please note that the VIN number of the CT20S is unique and cannot be repeated);
Package
CT20S Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1
The VIN number (Serial number) of the CT20S ebike is in the middle of the front fork of each CT20S, as shown in the picture (please note that the VIN number of the CT20S is unique and cannot be repeated);
CT20S Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1
Customer Reviews
I have had my CT20s ebike since December 2023, it already has a little over 900 miles traveling almost all of Miami, nothing on my ebike has failed, it is really very pleasant to ride and gives a pleasant feeling of freedom. It is certainly one of the best purchases I have ever made in my life, the shipping and support from coswheel has been wonderful.
Waiting for my CR20S to arrive. Had the T20 and loved it. But want more torque, more power and a lower seat. Full review to come. And have had a great service from Coswheel now and in the past. They design very cool bikes.
Overall very good.
Very good acceleration, very fast, great brakes.
The seat is not very comfortable I bought the new one
Good product. There are only a few drawbacks. Hard seat, not suitable for long journeys. The rear mudguard is too short and therefore provides poor protection in wet conditions. On the first day, the speed reached 66 km/h, then only 50 km/h. I still don't know why that is. The engine is powerful. The distance is long, depends on how fast you drive.
I took my CT20s out camping in the middle of the woods, had a blast riding on the trails! It climbed up pretty steep dirt trails and handled the bumps well. I got it up to 39mph before letting off and it wanted to keep going. I’ve also taken it on paved roads which it felt perfect for. It’s a great in between e-bike for on or off roading. I think this is the best e-bike at this price point, definitely recommend.
