GT20 MAX EBIKE
torque 120N.m, can climb 35 degrees slope, fat tire motorcycle ebike
GT20 MAX Specifications
Performance
- Top Speed: Class 2/3, 40 Mph (65Km/h)
- Range: 80+miles (128km) in Class-2 throttle-only mode (pure electricity); 145miles (233km) in Class-1 PAS (pedal assist)
- Motor: 60V Peak 2000W (Rated 1500W) Brushless Rear Hub Motor 120N.m

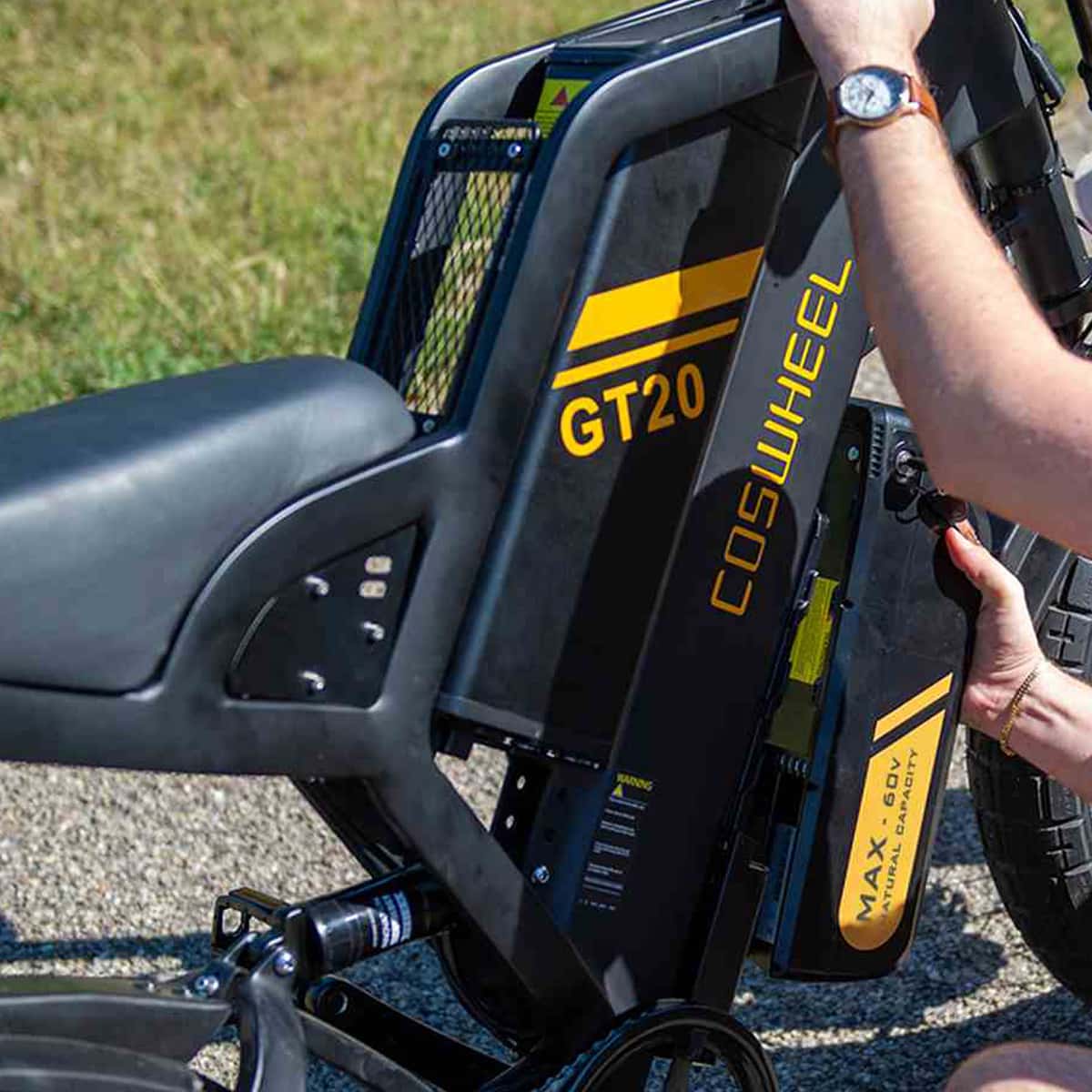

- Battery: 60V 25Ah+15Ah Samsung Battery (Lithium 18650 Cells)
- Energy: 2400Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Rear Suspension: 850 Pounds, 180mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: ARISUN Off Road Tire 20" × 4.0" A820 60TPI with Meimeng Tire+PVC Line

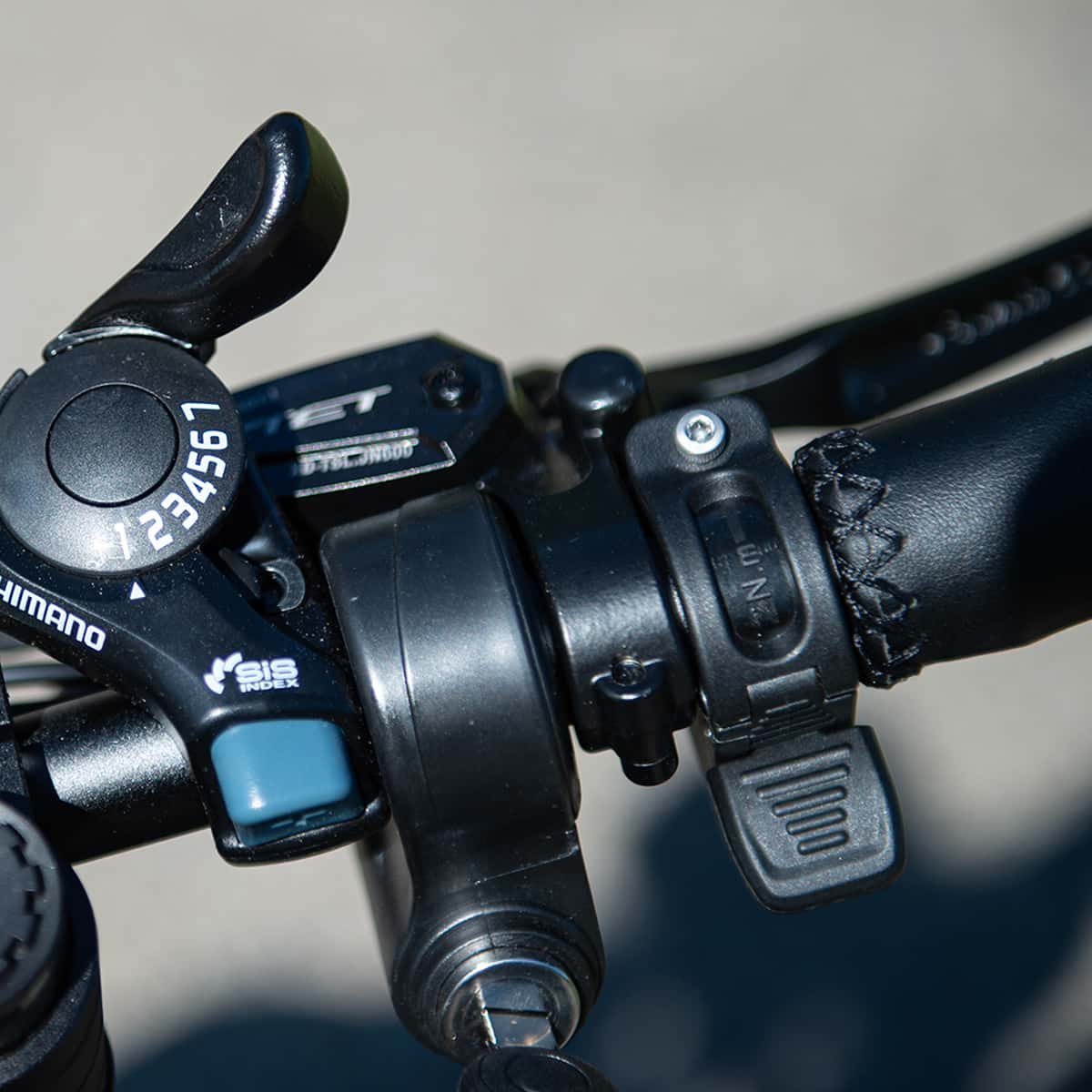

- Throttle: Thumb Throttle
Electronics
- Charger: 60V5A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display
- Controller: 60V 35A
- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 5 Levels
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Split Handlebar, φ32 φ22 Sand Black
Geometry
- Suitable Height: 5'1" - 6'5"
- Seat Height: 32.6" (83cm)
- Bike Height: 41.7" (106cm)
- Wheelbase: 47.8" (121.5cm)
- Handlebar Width: 27.2" (69cm)
- Bike Weight: ≥99lbs (with Battery) (≥45kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 27.2" *41.7" (180*69*106cm)
- Package Size: 59.4" * 13.8" * 36.2" (151*35*92cm)
The rear suspension has 3 holes for 3 levels of height adjustment, allowing you to adjust to a comfortable riding height.
80mm front suspension travel, 180mm rear suspension travel, 850 lbs.

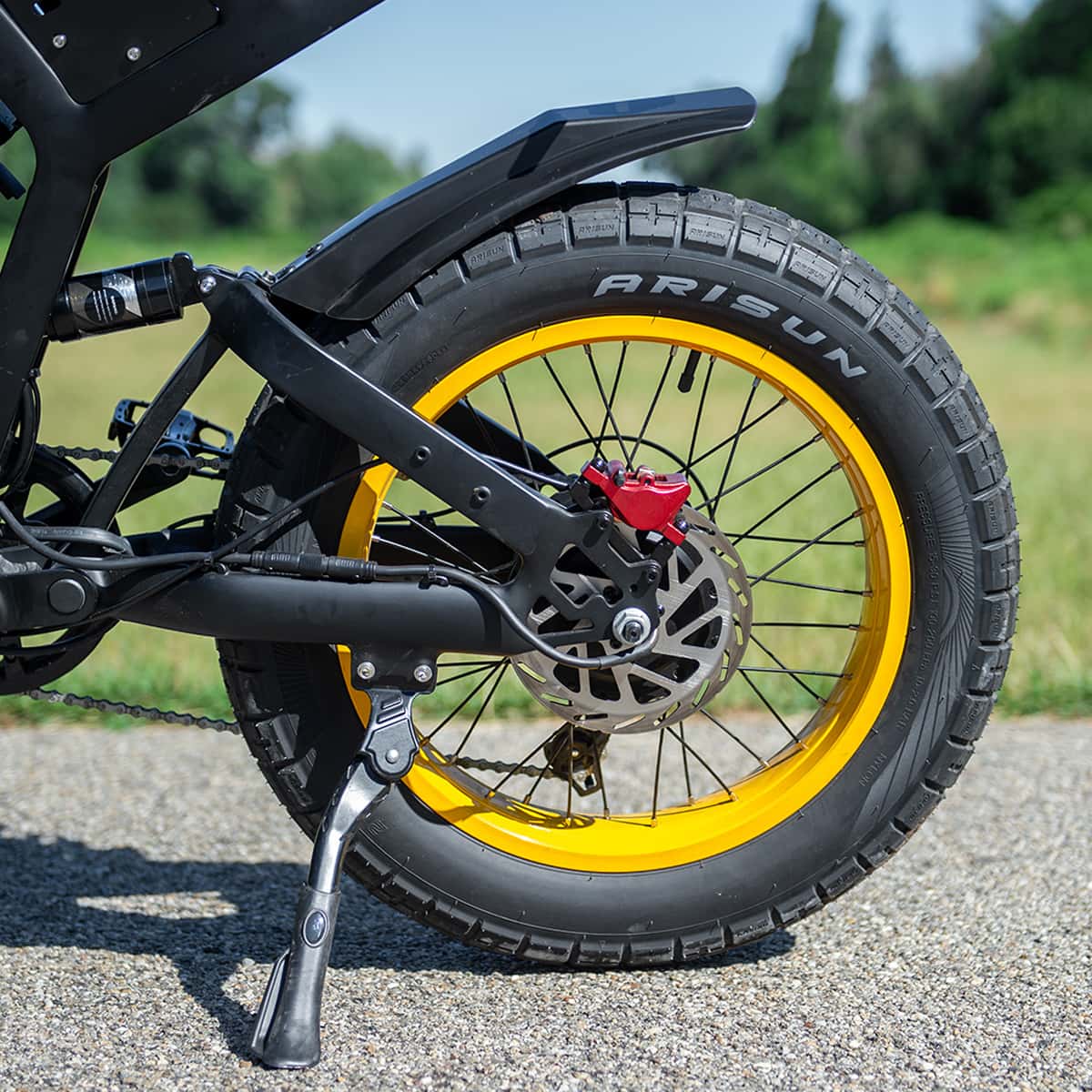

Front and rear double-piston hydraulic oil brakes, equipped with 180MM brake discs, make riding safer.
The GT20 MAX comes standard with a rear rack and rearview mirror.
Brand new waterproof and rust-proof chain, silver-white.
The crank adopts a double cover chain design, which effectively reduces the risk of chain dropping and makes you ride more safely.

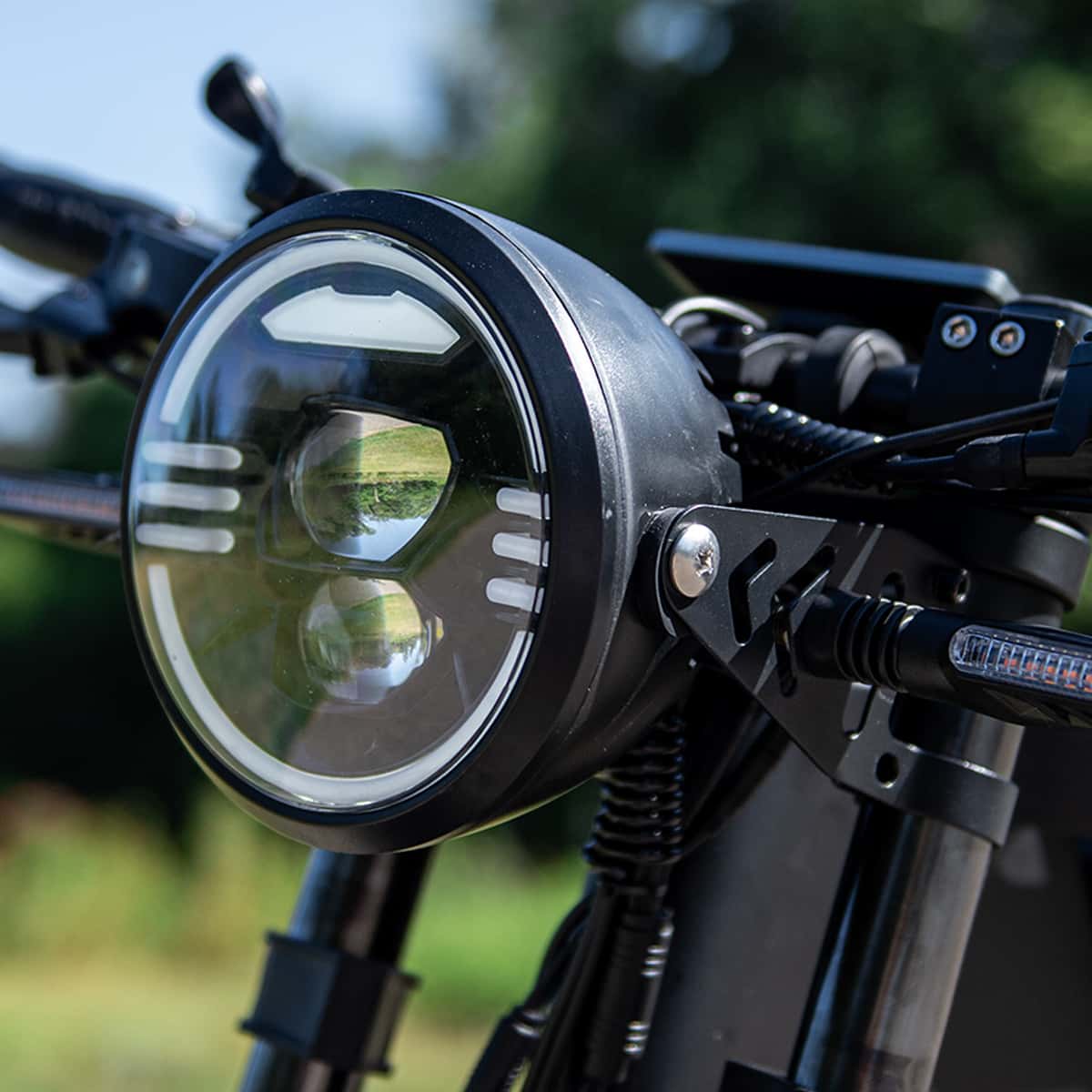

Flowing headlights, LED taillights, and flowing turn signals illuminate your way forward.

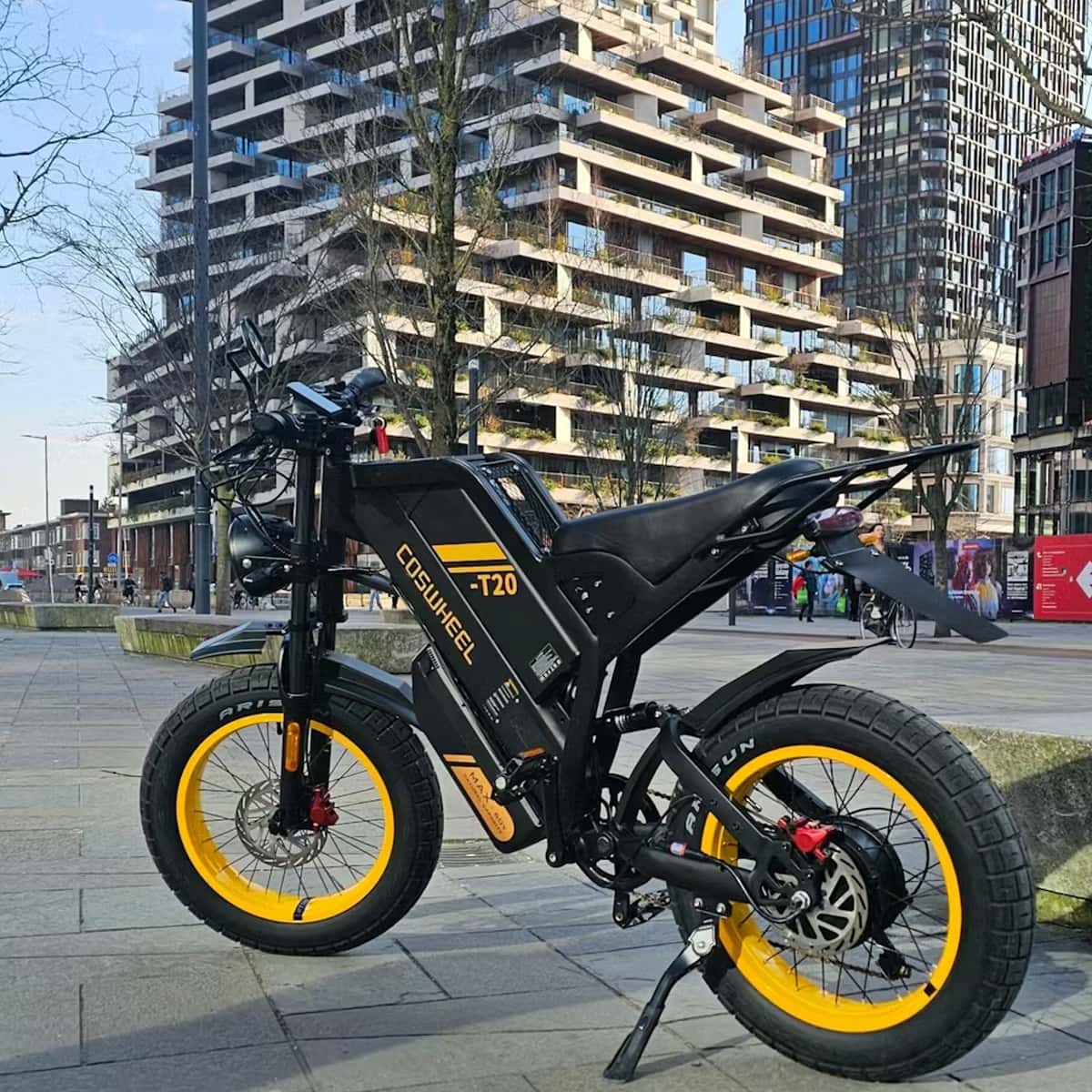

The all-aluminum frame has undergone 10,000 collision tests and is sturdy and reliable.
The rear suspension has 3 holes for 3 levels of height adjustment, allowing you to adjust to a comfortable riding height.
80mm front suspension travel, 180mm rear suspension travel, 850 lbs.
Front and rear double-piston hydraulic oil brakes, equipped with 180MM brake discs, make riding safer.
The GT20 MAX comes standard with a rear rack and rearview mirror.
Brand new waterproof and rust-proof chain, silver-white.
The crank adopts a double cover chain design, which effectively reduces the risk of chain dropping and makes you ride more safely.
Flowing headlights, LED taillights, and flowing turn signals illuminate your way forward.
The all-aluminum frame has undergone 10,000 collision tests and is sturdy and reliable.
Support
Manual
Certificate
VIN Number
The VIN number (Serial number) of the GT20 MAX ebike is in the middle of the front fork of each GT20 MAX (please note that the VIN number of the GT20 MAX is unique and cannot be repeated)
Package
GT20 MAX Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1/Rear Shelf*1/Rearview Mirror*1
The VIN number (Serial number) of the GT20 MAX ebike is in the middle of the front fork of each GT20 MAX (please note that the VIN number of the GT20 MAX is unique and cannot be repeated)
GT20 MAX Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1/Rear Shelf*1/Rearview Mirror*1
