GT20 EBIKE
torque 80N.m, can climb 30 degrees slope, fat tire motorcycle ebike
What Online Reviewers Say GT20
The GT20 ebike is favored by more and more customers, and many customers have posted their objective evaluations of the GT20 on YouTube.
GT20 Specifications
Performance
- Top Speed: Class 2/3, 28 Mph (45Km/h)
- Range: 50+miles (80km) in Class-2 throttle-only mode (pure electricity); 87miles (140km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1500W (Rated 1000W) Brushless Rear Hub Motor 80N.m
- Battery: 48V 25Ah Battery (Lithium 18650 Cells)
- Energy: 1200Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Rear Suspension: 850 Pounds, 180mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: ARISUN Off Road Tire 20" × 4.0" A820 60TPI with Meimeng Tire+PVC Line
- Throttle: Grip Twist Throttle
Electronics
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display
- Controller: 48V 28A
- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 5 Levels
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Split Handlebar, φ32 φ22 Sand Black
Geometry
- Suitable Height: 5'1" - 6'5"
- Seat Height: 32.6" (83cm)
- Bike Height: 41.7" (106cm)
- Wheelbase: 47.8" (121.5cm)
- Handlebar Width: 27.2" (69cm)
- Bike Weight: ≥99lbs (with Battery) (≥45kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 27.2" *41.7" (180*69*106cm)
- Package Size: 59.4" * 13.8" * 36.2" (151*35*92cm)
GT20 is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.
There is a USB 1AH charging port under the GT20 display, which is convenient for you to charge your mobile phone with low battery when riding outdoors, ensuring your safety.

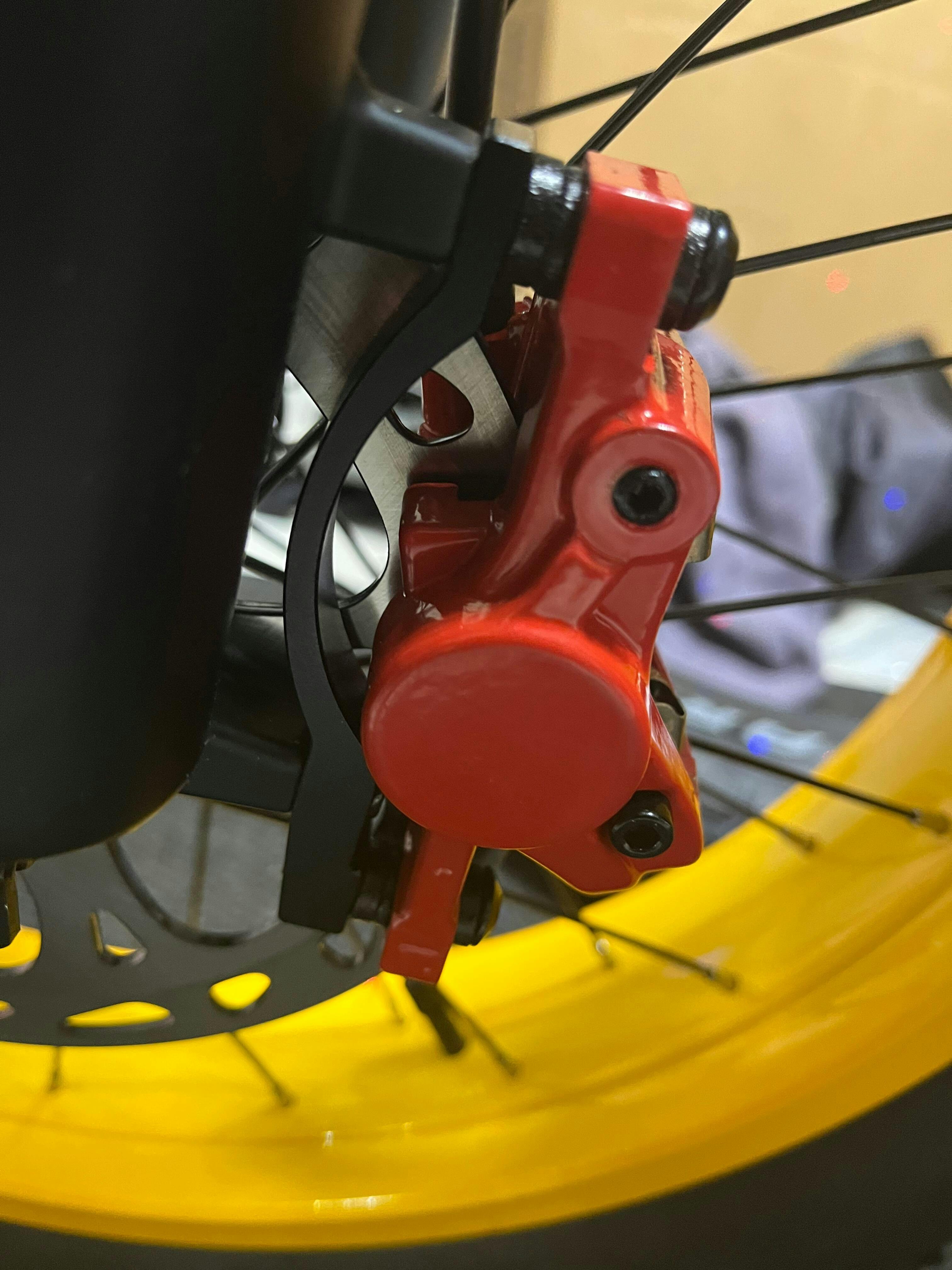

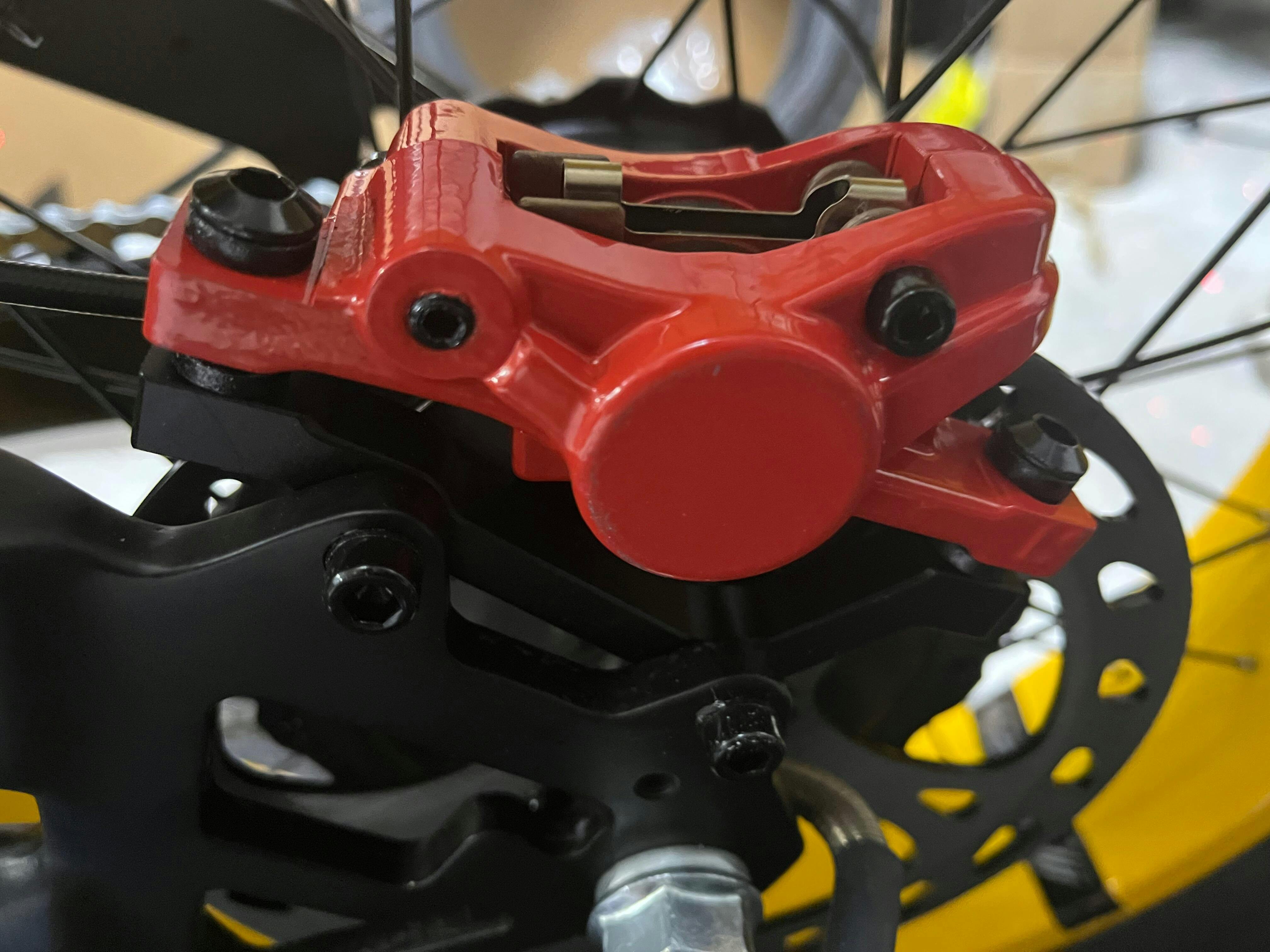

Front and rear motorcycle-level dual-piston hydraulic oil brakes, equipped with 180MM high-quality brake discs, make your riding safer.
With soft and thick leather seat, make your ride more comfortable.
Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.
There is a sturdy shelf under the frame that can be used to store items such as water bottles.
GT20 is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.
There is a USB 1AH charging port under the GT20 display, which is convenient for you to charge your mobile phone with low battery when riding outdoors, ensuring your safety.
Front and rear motorcycle-level dual-piston hydraulic oil brakes, equipped with 180MM high-quality brake discs, make your riding safer.
With soft and thick leather seat, make your ride more comfortable.
Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.
There is a sturdy shelf under the frame that can be used to store items such as water bottles.
The GT20 is equipped with a high-speed brushless motor with a peak value of 1500W (rated at 1000W), with an instantaneous maximum current of 28AH and a torque of 80N.m, allowing you to easily shuttle between cities and country roads.
GT20 provides 1200Wh (25AH) high-quality 18650 lithium battery with a range of up to 87 miles (140KM) and a max speed of 28MPH (45KM/H). It is legal and complies with Class 2 and Class 3 modes. Please feel free to ride.
The GT20 is ideal for people 5.1(ft) - 6.5(ft) tall. At the same time, the rear suspension has 3 levels of adjustment, so you can adjust your sitting posture according to your height.
Customers And GT20
Support
Manual
Certificate
VIN Number
The VIN number (Serial number) of the GT20 ebike is in the middle of the front fork of each GT20 (please note that the VIN number of the GT20 is unique and cannot be repeated)
Package
GT20 Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1
The VIN number (Serial number) of the GT20 ebike is in the middle of the front fork of each GT20 (please note that the VIN number of the GT20 is unique and cannot be repeated)
GT20 Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1
Customer Reviews
Does what says on the tin. Looks solidly built and handles even light offroad. Weak spots are the fenders, slim saddle. Would like manual activation of cruise control (not only automatic), blinkers indication on main screen and range estimation, as opposed to showing only 5 battery bars. Overall satisfied and would reccomend.
I have been riding bikes a long time by far this is the best bike I’ve ever owned gears are smooth suspension is great and looks great
Man is this bike cool! So cool you can’t take a ride without someone telling you just that!
Besides styling and profiling the ride is also comfortable. I always had a problem with bike seats but not with the long seat on the GT20 it rides and performs more like a cycle than a bike! I love the pedal assist and use it more than the throttle. Even has 7 gear shimano shifting for riding without assist.
I held off buying a e-bike because of the braking system on bikes but the GT20 comes with tan oil braking motorcycle like braking for stopping on a dime. Like I said before best E-Bike ever.
no podia estar mas satisfecho de verdad , ha sido tanto el trato como el 0roducto tan bueno que aún no me lo creo , primera ebike de estas caracteristicas , es impresionante
I had experience with three Oder e bikes, that I purchased, but coswheel GT20 my best choice thanks to my son that reviewed for me no complaints great e bike I go to work drive for 50 minutes everyday back and forth no complaints nice drive nice suspension I will recommend to anyone.
